Partial Introduction

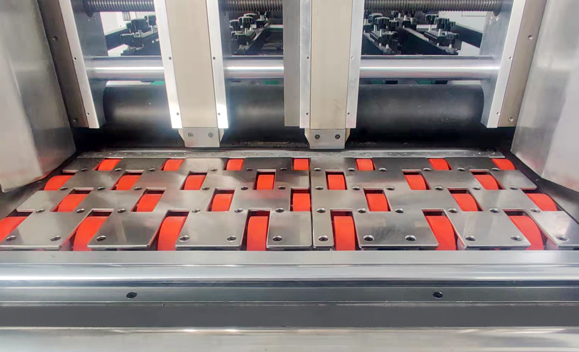

Feeder

High-speed feeder head with adaptive paper adjustment capability.

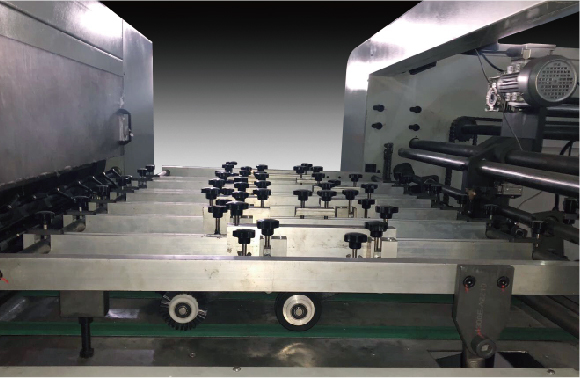

Paper conveying unit

Equipped with gas spring support and slowdown mechanism for sheet feeding at the front gauge, it integrates with the paper feeding frame for unified adjustment of the feeding rollers, enabling rapid and convenient tuning.

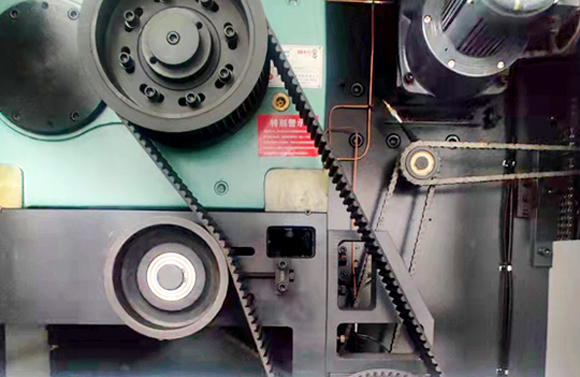

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Non-stop roll-up curtain type paper delivery device

Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

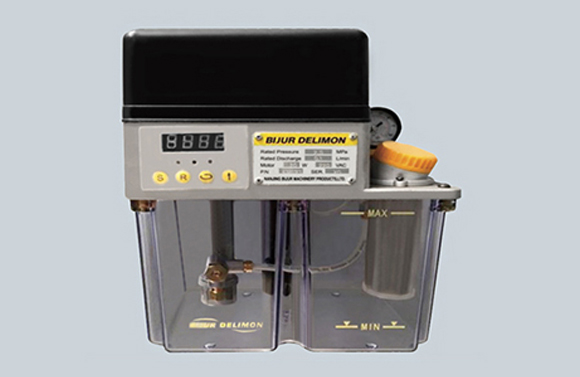

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1060
01. Non-stop high-speed paper feeding section〇
02. Fish-scale powerful paper suction feeder head with 4 suction and 4 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper〇
03. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy〇
04. Triple feeder head anti-collision device〇
05. Horizontal paper separation blower〇
06. The main and auxiliary stacking tables alternate without stopping, and the feeder operates without stopping〇
07. Electrical left/right fine-tuning device for the main feed pile〇
08. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder〇
09. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine〇
10. Large inclined paper table, suitable for high-speed conveying of thin paper and curved paper〇
11. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements〇
12. Photoelectric detection of side gauge and front gauge〇
13. Slowdown mechanism for sheet feeding at the front gauge〇
14. Electromechanical double sheet detector〇
15. Imported paper feeding belt and stainless steel transfer plate〇
16. Pneumatic lifting device for paper feeding frame〇
17. Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence. Regardless of proofing, pressure testing, etc., the conveying part can be separated and closed as desired〇
18. PLC and electronic cam control the timing of the whole machine〇
19. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient〇
06. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇

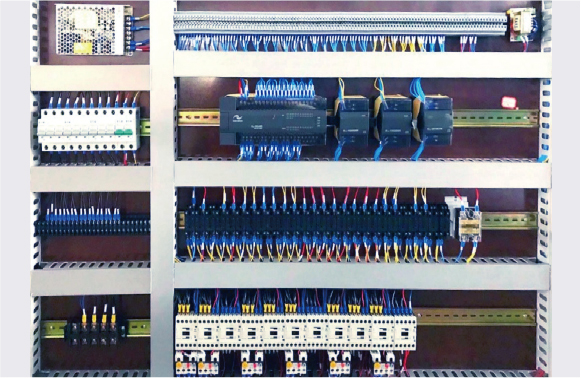

Electric Unit
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1060
Max. Sheet Size1080×780mm
Min. Sheet Size400×350mm
Max. Cutting Size1060×760mm
Min. Gripper Margin9-17mm
Cutting Rule Height23.8mm
Inner Chase Size1100×790mm
Stock RangeCardboard: 80-2000g/m2, 0.1-2mm
Corrugated board: ≤4mm
Die Cutting Accuracy≤±0.1mm
Max. Die Cutting Force300T
Max. Working Speed7500s/h
Max. Feeder Pile Height1600mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)
Main Motor Wattage11KW
Full Load Wattage16.9KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/min
Net Weight of Machine16.5T
Machine Dimensions6300×4256×2350mm (L×W×H)  (L: paper prepared track included, W: platform included)

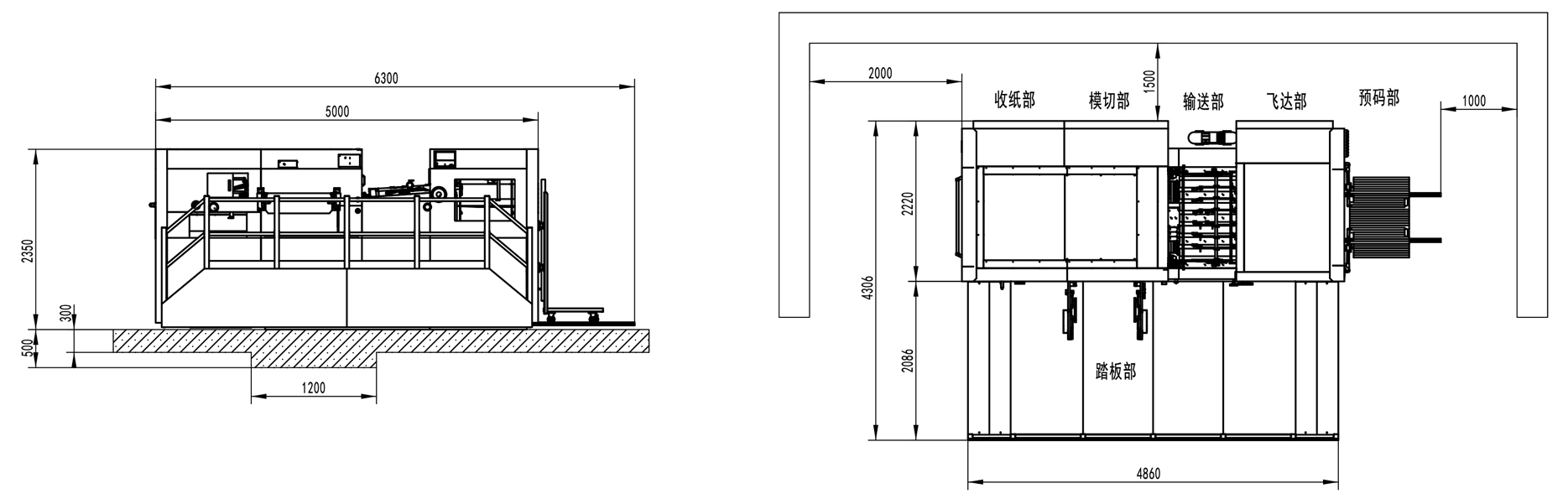

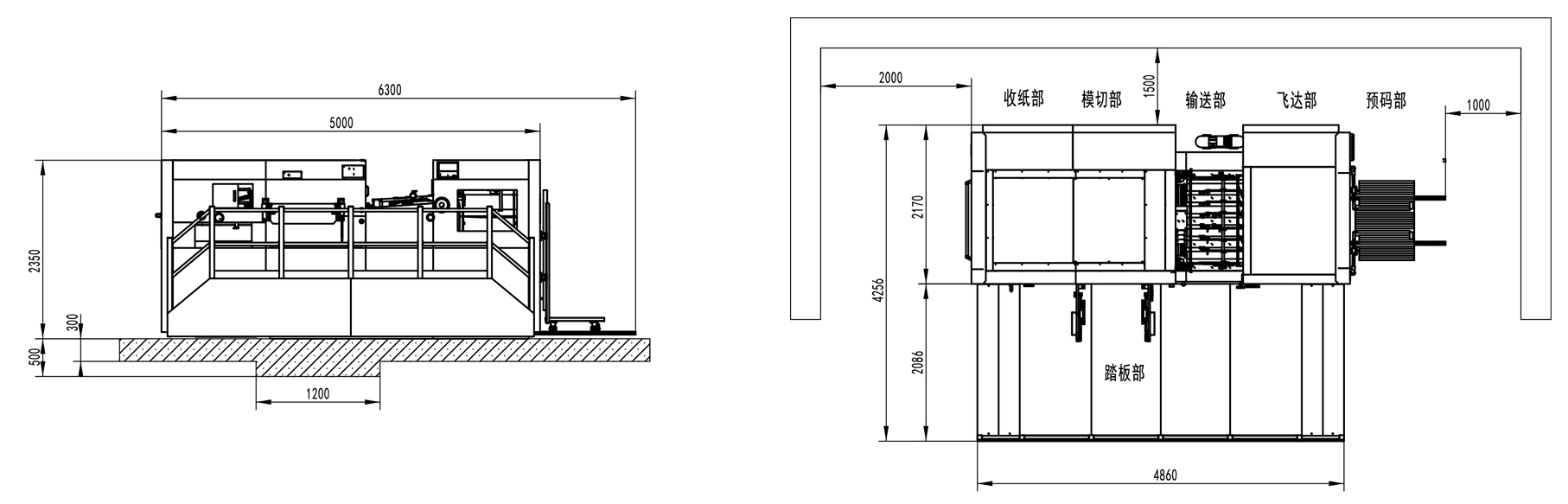

Drawing

]]> MHC 1060CE http://www.wukongjiepai.com/en/?p=1278 Fri, 09 Oct 2020 15:23:43 +0000 http://www.wukongjiepai.com/?p=1278

Partial Introduction

Feeder

High-speed feeder head with adaptive paper adjustment capability.

Paper conveying unit

Equipped with gas spring support and slowdown mechanism for sheet feeding at the front gauge, it integrates with the paper feeding frame for unified adjustment of the feeding rollers, enabling rapid and convenient tuning.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

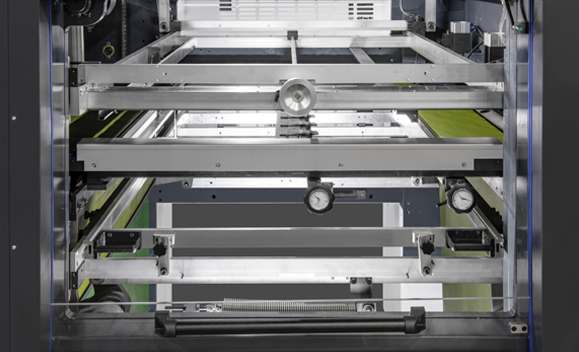

Stripping unit

The stripping plate is installed using a centerline quick-positioning method, enabling operators to mount it rapidly and improve changeover efficiency.

Non-stop roll-up curtain type paper delivery device

Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1060CE
01. Non-stop high-speed paper feeding section〇
02. Fish-scale powerful paper suction feeder head with 4 suction and 4 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper〇
03. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy〇
04. Triple feeder head anti-collision device〇
05. Horizontal paper separation blower〇
06. The main and auxiliary stacking tables alternate without stopping, and the feeder operates without stopping〇
07. Electrical left/right fine-tuning device for the main feed pile〇
08. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder〇
09. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine〇
10. Large inclined paper table, suitable for high-speed conveying of thin paper and curved paper〇
11. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements〇
12. Photoelectric detection of side gauge and front gauge〇
13. Slowdown mechanism for sheet feeding at the front gauge〇
14. Electromechanical double sheet detector〇
15. Imported paper feeding belt and stainless steel transfer plate〇
16. Pneumatic lifting device for paper feeding frame〇
17. Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence. Regardless of proofing, pressure testing, etc., the conveying part can be separated and closed as desired〇
18. PLC and electronic cam control the timing of the whole machine〇
19. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Stripping Unit （Three frames）
01. Upper waste transmission mechanism〇
02. Users can choose whether to use the stripping function by lifting upper stripping frame〇
03. Intermediate negative stripping transmission mechanism〇
04. Lower stripping transmission mechanism〇
05. The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient〇
06. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electric Unit
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1060CE
Max. Sheet Size1080×780mm
Min. Sheet Size400×350mm
Max. Cutting Size1060×760mm
Min. Gripper Margin9-17mm
Min. Width of Cuts10-18mm
Cutting Rule Height23.8mm
Inner Chase Size1100×790mm
Stock RangeCardboard: 80-2000g/m2,0.1-2mm
Corrugated board: ≤4mm
Die Cutting Accuracy≤±0.1mm
Max. Die Cutting Force300T
Max. Working Speed7500s/h
Max. Feeder Pile Height1600mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)
Main Motor Wattage11KW
Full Load Wattage18KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/min
Net Weight of Machine17.5T
Machine Dimensions7300×4256×2350mm(L×W×H) (L: paper prepared track included, W: platform included)

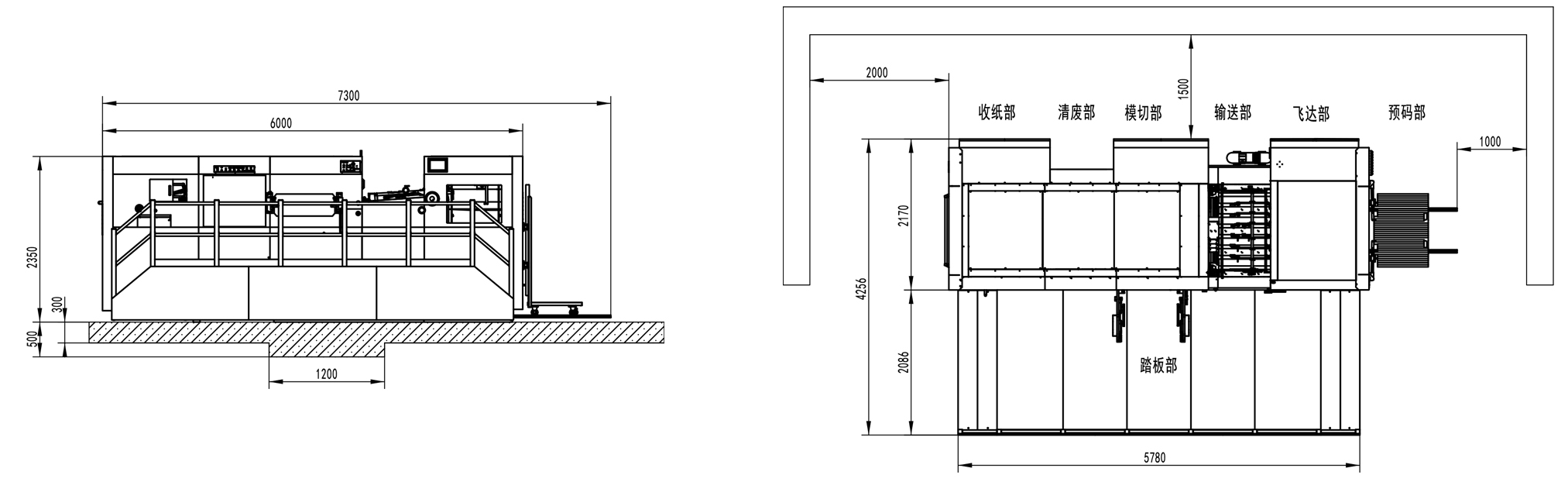

Drawing

]]> MHC 1060A http://www.wukongjiepai.com/en/?p=1286 Fri, 09 Oct 2020 15:29:54 +0000 http://www.wukongjiepai.com/?p=1286

Partial Introduction

Feeder

High-speed feeder head with adaptive paper adjustment capability.

Paper conveying unit

Equipped with gas spring support and slowdown mechanism for sheet feeding at the front gauge, it integrates with the paper feeding frame for unified adjustment of the feeding rollers, enabling rapid and convenient tuning.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Main unit cooling/lubrication mechanism

Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Non-stop roll-up curtain type paper delivery device

Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1060A
01. Non-stop high-speed paper feeding section〇
02. Fish-scale powerful paper suction feeder head with 4 suction and 4 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper〇
03. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy〇
04. Triple feeder head anti-collision device〇
05. Horizontal paper separation blower〇
06. The main and auxiliary stacking tables alternate without stopping, and the feeder operates without stopping〇
07. Electrical left/right fine-tuning device for the main feed pile〇
08. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder〇
09. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine〇
10. Large inclined paper table, suitable for high-speed conveying of thin paper and curved paper〇
11. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements〇
12. Photoelectric detection of side gauge and front gauge〇
13. Slowdown mechanism for sheet feeding at the front gauge〇
14. Electromechanical double sheet detector〇
15. Imported paper feeding belt and stainless steel transfer plate〇
16. Pneumatic lifting device for paper feeding frame〇
17. Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence. Regardless of proofing, pressure testing, etc., the conveying part can be separated and closed as desired〇
18. PLC and electronic cam control the timing of the whole machine〇
19. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
16. Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient〇
06. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electric Unit
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1060A
Max. Sheet Size1080×780mm
Min. Sheet Size400×350mm
Max. Cutting Size1060×760mm
Min. Gripper Margin9-17mm
Cutting Rule Height23.8mm
Inner Chase Size1100×790mm
Stock RangeCardboard: 80-2000g/m2, 0.1-2mm
Corrugated board: ≤4mm
Die Cutting Accuracy≤±0.1mm
Max. Die Cutting Force600T
Max. Working Speed7500s/h
Max. Feeder Pile Height1600mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)
Main Motor Wattage15KW
Full Load Wattage21KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/min
Net Weight of Machine19T
Machine Dimensions6300×4306×2350mm(L×W×H) (L: paper prepared track included, W: platform included)

Drawing

]]> MHC 1060ACE http://www.wukongjiepai.com/en/?p=1283 Fri, 09 Oct 2020 15:24:26 +0000 http://www.wukongjiepai.com/?p=1283

Partial Introduction

Feeder

High-speed feeder head with adaptive paper adjustment capability.

Paper conveying unit

Equipped with gas spring support and slowdown mechanism for sheet feeding at the front gauge, it integrates with the paper feeding frame for unified adjustment of the feeding rollers, enabling rapid and convenient tuning.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Main unit cooling/lubrication mechanism

Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Stripping unit

The stripping plate is installed using a centerline quick-positioning method, enabling operators to mount it rapidly and improve changeover efficiency.

Non-stop roll-up curtain type paper delivery device

Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1060ACE
01. Non-stop high-speed paper feeding section〇
02. Fish-scale powerful paper suction feeder head with 4 suction and 4 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper〇
03. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy〇
04. Triple feeder head anti-collision device〇
05. Horizontal paper separation blower〇
06. The main and auxiliary stacking tables alternate without stopping, and the feeder operates without stopping〇
07. Electrical left/right fine-tuning device for the main feed pile〇
08. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder〇
09. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine〇
10. Large inclined paper table, suitable for high-speed conveying of thin paper and curved paper〇
11. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements〇
12. Photoelectric detection of side gauge and front gauge〇
13. Slowdown mechanism for sheet feeding at the front gauge〇
14. Electromechanical double sheet detector〇
15. Imported paper feeding belt and stainless steel transfer plate〇
16. Pneumatic lifting device for paper feeding frame〇
17. Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence. Regardless of proofing, pressure testing, etc., the conveying part can be separated and closed as desired〇
18. PLC and electronic cam control the timing of the whole machine〇
19. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
16. Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.〇
Stripping Unit
01. Upper waste transmission mechanism〇
02. Users can choose whether to use the stripping function by lifting upper stripping frame〇
03. Intermediate negative stripping transmission mechanism〇
04. Lower stripping transmission mechanism〇
05. The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient〇
06. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electric Unit
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1060ACE
Max. Sheet Size1080×780mm
Min. Sheet Size400×350mm
Max. Cutting Size1060×760mm
Min. Gripper Margin9-17mm
Min. Width of Cuts10-18mm
Cutting Rule Height23.8mm
Inner Chase Size1100×790mm
Stock RangeCardboard: 80-2000g/m2,0.1-2mm
Corrugated board: ≤4mm
Die Cutting Accuracy≤±0.1mm
Max. Die Cutting Force600T
Max. Working Speed7500s/h
Max. Feeder pile height1600mm (With pallet)
Max. Delivery pile height1400mm (With pallet)
Main Motor Wattage15KW
Full Load Wattage21KW
Air RequirementPressure:  0.6-0.7Mpa, Flow: ≥0.37m3/min
Net Weight of Machine20T
Machine Dimensions7300×4306×2350mm(L×W×H) (L: paper prepared track included, W: platform included)

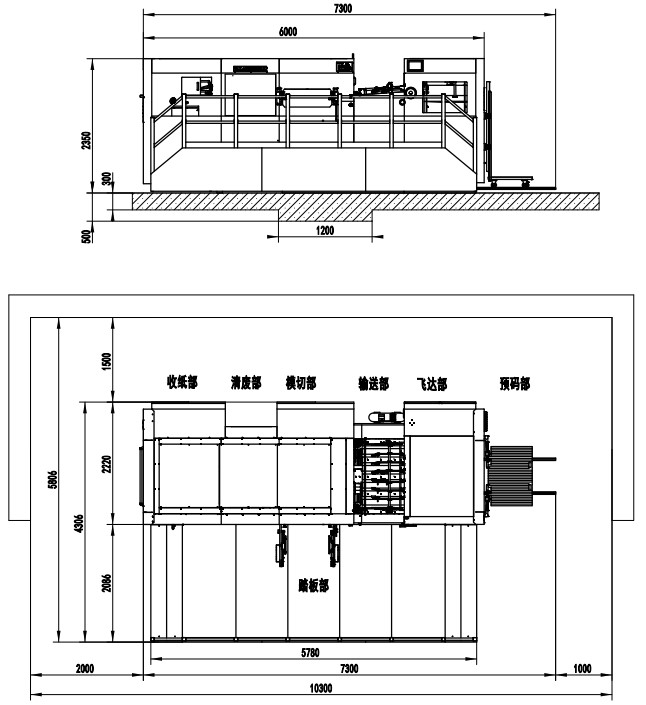

Drawing

]]> MHC 1060AR http://www.wukongjiepai.com/en/?p=1289 Fri, 09 Oct 2020 15:38:10 +0000 http://www.wukongjiepai.com/?p=1289

Features Introduction

The MHC-1060AR/1080AR Automatic Die Cutting Machine with Heating System is key equipment for printing finishing such as die cut, crease and embossing etc. Unique drive gears are adopted such as high-precision indexing mechanism, pneumatic closed up, pneumatic clutch, overload protection, automatic compression relief etc, to ensure stable and high speed running of the machine. This machine is equipped with practical and reliable mechanism such as pre-stack device, secondary delivery mechanisms, manual sampling, etc, which ensure the excellent performance of the machine. Electrical components and driving elements of internationally known brands to ensure die cutting precision and reliability of running. Also man-machine interface is able to monitor machine running status, troubleshooting and indicating relevant help information which fully actualized man-machine communication.

Partial Introduction

Feeder

High-speed feeder head with adaptive paper adjustment capability.

Paper conveying unit

Equipped with gas spring support and slowdown mechanism for sheet feeding at the front gauge, it integrates with the paper feeding frame for unified adjustment of the feeding rollers, enabling rapid and convenient tuning.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Micro-adjustable honeycomb plate

20-Zone Independent Temperature Control System ensures precise heating of the hot stamping plate, delivering balanced and stable temperature distribution across the entire heating system. Maximum stamping pressure reaches 600 tons.

Main unit cooling/lubrication mechanism

Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Non-stop roll-up curtain type paper delivery device

Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1060AR
01. Non-stop high-speed paper feeding section〇
02. Fish-scale powerful paper suction feeder head with 4 suction and 4 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper〇
03. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy〇
04. Triple feeder head anti-collision device〇
05. Horizontal paper separation blower〇
06. The main and auxiliary stacking tables alternate without stopping, and the feeder operates without stopping〇
07. Electrical left/right fine-tuning device for the main feed pile〇
08. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder〇
09. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine〇
10. Large inclined paper table, suitable for high-speed conveying of thin paper and curved paper〇
11. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements〇
12. Photoelectric detection of side gauge and front gauge〇
13. Slowdown mechanism for sheet feeding at the front gauge〇
14. Electromechanical double sheet detector〇
15. Imported paper feeding belt and stainless steel transfer plate〇
16. Pneumatic lifting device for paper feeding frame〇
17. Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence. Regardless of proofing, pressure testing, etc., the conveying part can be separated and closed as desired〇
18. PLC and electronic cam control the timing of the whole machine〇
19. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The 20-temperature zones independent control system can effectively control the heating temperature of the heating plate, ensuring that the temperature control of the entire heating system is more balanced and stable〇
16. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
17. Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient〇
06. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electric Unit
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1060AR
Max. Sheet Size1080×780mm
Min. Sheet Size400×350mm
Max. Cutting Size1060×760mm
Max. Embossing Size1060×760mm
Min. Gripper Margin9-17mm
Cutting Rule Height23.8mm
Inner Chase Size1100×790mm
Stock RangeCardboard: 80-2000g/m2, 0.1-2mm
Corrugated board: ≤4mm
Die Cutting Accuracy≤±0.1mm
Embossing Accuracy≤±0.1mm
Max. Die Cutting Force600T
Max. Working Speed7500s/h
Max. Feeder Pile Height1600mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)
Electric-heated System20 temperature ranges, 40-180℃ is adjustable
Main Motor Wattage15KW
Full Load Wattage35KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/min
Net Weight of Machine19T
Machine Dimensions6300×4306×2350mm(L×W×H) (L: paper prepared track included, W: platform included)

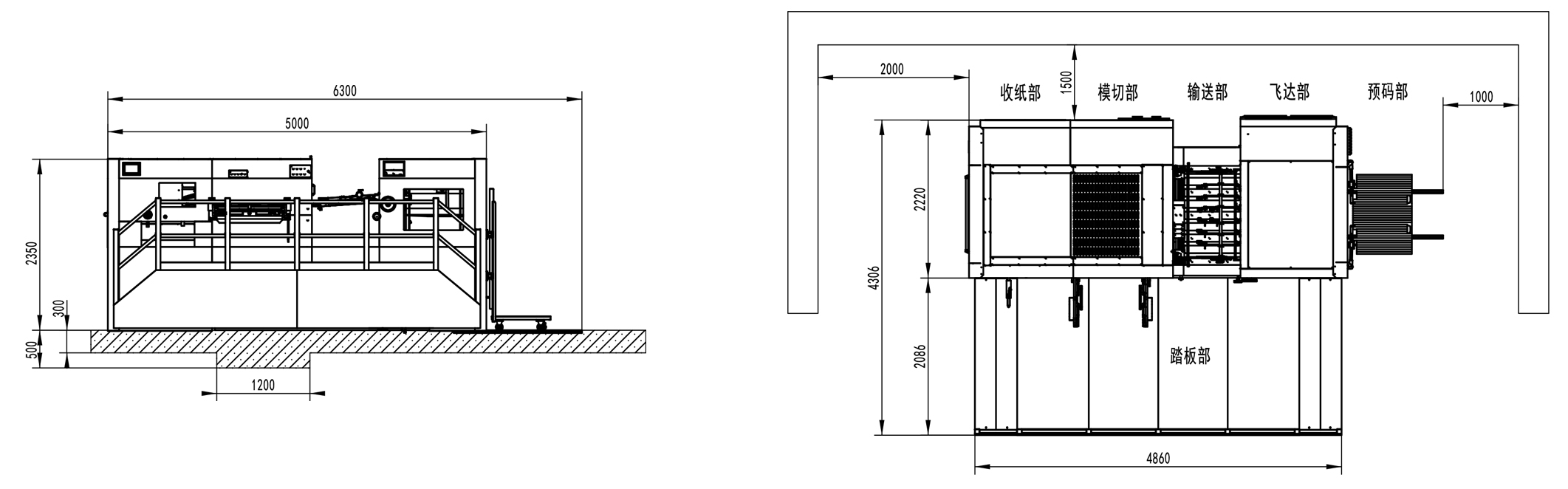

Drawing

]]> MHC 1060ACER http://www.wukongjiepai.com/en/?p=2406 Thu, 19 Nov 2020 08:17:34 +0000 http://www.wukongjiepai.com/?p=2406

Features Introduction

The MHC-1060ACER/1080ACER Automatic Die Cutting Machine with Heating System is key equipment for printing finishing such as die cut, crease and embossing etc. Unique drive gears are adopted such as high-precision indexing mechanism, pneumatic closed up, pneumatic clutch, overload protection, automatic compression relief etc, to ensure stable and high speed running of the machine. This machine is equipped with practical and reliable mechanism such as pre-stack device, secondary delivery mechanisms, manual sampling, etc, which ensure the excellent performance of the machine. Electrical components and driving elements of internationally known brands to ensure die cutting precision and reliability of running. Also man-machine interface is able to monitor machine running status, troubleshooting and indicating relevant help information which fully actualized man-machine communication.

Partial Introduction

Feeder

High-speed feeder head with adaptive paper adjustment capability.

Paper conveying unit

Equipped with gas spring support and slowdown mechanism for sheet feeding at the front gauge, it integrates with the paper feeding frame for unified adjustment of the feeding rollers, enabling rapid and convenient tuning.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Honeycomb plate

20-Zone Independent Temperature Control System ensures precise heating of the hot stamping plate, delivering balanced and stable temperature distribution across the entire heating system. Maximum stamping pressure reaches 600 tons.

Main unit cooling/lubrication mechanism

Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.

Stripping unit

The stripping plate is installed using a centerline quick-positioning method, enabling operators to mount it rapidly and improve changeover efficiency.

Non-stop roll-up curtain type paper delivery device

Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1060ACER
01. Non-stop high-speed paper feeding section〇
02. Fish-scale powerful paper suction feeder head with 4 suction and 4 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper〇
03. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy〇
04. Triple feeder head anti-collision device〇
05. Horizontal paper separation blower〇
06. The main and auxiliary stacking tables alternate without stopping, and the feeder operates without stopping〇
07. Electrical left/right fine-tuning device for the main feed pile〇
08. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder〇
09. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine〇
10. Large inclined paper table, suitable for high-speed conveying of thin paper and curved paper〇
11. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements〇
12. Photoelectric detection of side gauge and front gauge〇
13. Slowdown mechanism for sheet feeding at the front gauge〇
14. Electromechanical double sheet detector〇
15. Imported paper feeding belt and stainless steel transfer plate〇
16. Pneumatic lifting device for paper feeding frame〇
17. Single-point clutch: The conveying part and the main machine part can be separated and synchronously combined at any time, which simplifies and facilitates the operation sequence. Regardless of proofing, pressure testing, etc., the conveying part can be separated and closed as desired〇
18. PLC and electronic cam control the timing of the whole machine〇
19. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The 20-temperature zones independent control system can effectively control the heating temperature of the heating plate, ensuring that the temperature control of the entire heating system is more balanced and stable〇
16. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
17. Automatic oil pumping circulation cooling device ensures the lubrication of the main machine during long-term high-speed operation and maintains the normal temperature of the lubricating oil of the main machine.〇
Stripping Unit （Three frames）
01. Upper waste transmission mechanism〇
02. Users can choose whether to use the stripping function by lifting upper stripping frame〇
03. Intermediate negative stripping transmission mechanism〇
04. Lower stripping transmission mechanism〇
05. The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient〇
06. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electric Unit
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1060ACER
Max. Sheet Size1080×780mm
Min. Sheet Size400×350mm
Max. Cutting Size1060×760mm
Max. Embossing Size1060×760mm
Min. Gripper Margin9-17mm
Min. Width of Cuts10-18mm
Cutting Rule Height23.8mm
Inner Chase Size1100×790mm
Stock RangeCardboard: 80-2000g/m2,0.1-2mm
Corrugated board: ≤4mm
Die Cutting Accuracy≤±0.1mm
Embossing Accuracy≤±0.1mm
Max. Die Cutting Force600T
Max. Working Speed7500s/h
Max. Feeder Pile Height1600mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)
Electric-heated System20 temperature ranges, 40-180℃ is adjustable
Main Motor Wattage15KW
Full Load Wattage36KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/min
Net Weight of Machine20T
Machine Dimensions7300×4306×2350mm(L×W×H) (L: paper prepared track included, W: platform included)

Drawing

]]> MHC 1100B/1300B/1500B/1650B/1900B http://www.wukongjiepai.com/en/?p=1188 Fri, 09 Oct 2020 13:48:13 +0000 http://www.wukongjiepai.com/?p=1188

Features Introduction

The second generation of MHC series Semi-automatic Die Cutting The Machine’ s development is combined with advantages of similar products in domestic and over seas, is special equipment for packing products such as cartons and paper boxes. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting.
Transducer is adopted to control the main motor in achieving step-less speed variation.

Features Introduction

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Delivery unit

High stack lifting delivery mechanism: The paper collection structure allows entire stacks to be pulled out of the machine.

Electrical unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1100B/1300B/1500B/1650B/1900B
01. Commonly used for cardboard, corrugated paper and grey board paper〇
02. Equipped with a monitor to visually observe the operation of the delivery section〇
03. A 10.4-inch color screen displays the working status of the machine at all times〇
04. Equipped with a pre-paper stacking mechanism for high work efficiency〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Delivery Unit
01. High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine.(Special for high pile stacking delivery)〇
02. Paper delivery alignment device〇
03. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
04. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electrical unit
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1100BMHC-1300BMHC-1500BMHC-1650BMHC-1900B
Max. Sheet Size1100×790mm1290×940mm1500×1100mm1650×1200mm1900×1400mm
Min. Sheet Size400×350mm470×450mm470×450mm550×500mm650×550mm
Max. Cutting Size1070×770mm1280×920mm1480×1080mm1620×1180mm1870×1380mm
Min. Gripper Margin9-17mm9-17mm9-17mm9-17mm9-17mm
Cutting Rule Height23.8mm23.8mm23.8mm23.8mm23.8mm
Inner Chase Size1100×790mm1310×950mm1510×1120mm1682×1220mm1920×1430mm
Stock RangeCorrugated board: ≤7mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated papeCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy≤±0.1mm≤±0.15mm≤±0.15mm≤±0.2mm≤±0.2mm
Max. Die Cutting Force300T400T400T400T450T
Max. Working Speed7500s/h5500s/h5500s/h4500s/h4000s/h
Max. Feeder Pile Height1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)1620mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1500mm (With pallet)
Main Motor Wattage11KW11KW15KW18.5KW18.5kw
Full Load Wattage14KW14KW18KW22KW22KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min
Net Weight of Machine13T15T18T21T26T
Machine Dimensions6300×4256×2350mm
(L: paper prepared track included,
W: platform included)		6023×4506×2467mm
(L: paper prepared track included,
W: platform included)		6295×4706×2452mm
(L: paper prepared track included,
W: platform included)		6646×5117×2582mm
(L: paper prepared track included,
W: platform included)		8100×5872×2525mm
(L: paper prepared track included,
W: platform included)

Drawing

MHC-1100B

MHC-1300B

MHC-1500B

MHC-1650B

MHC-1900B

]]> MHC 1100BC/1300BC/1500BC/1650BC http://www.wukongjiepai.com/en/?p=2397 Thu, 19 Nov 2020 08:08:09 +0000 http://www.wukongjiepai.com/?p=2397

Features Introduction

The second generation of MHC series Semi-automatic Die Cutting The Machine’ s development is combined with advantages of similar products in domestic and over seas, is special equipment for packing products such as cartons and paper boxes. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting.
Transducer is adopted to control the main motor in achieving step-less speed variation.

Features Introduction

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Stripping unit

● Adopt the stripping mechanism of three frames.

● The stripping plate is installed using a centerline quick-positioning method, enabling operators to mount it rapidly and improve changeover efficiency

Delivery unit

High stack lifting delivery mechanism: The paper collection structure allows entire stacks to be pulled out of the machine.

Electrical unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1100BC/1300BC/1500BC/1650BC
01. Commonly used for cardboard, corrugated paper and grey board paper〇
02. Equipped with a monitor to visually observe the operation of the delivery section〇
03. A 10.4-inch color screen displays the working status of the machine at all times〇
04. Equipped with a pre-paper stacking mechanism for high work efficiency〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Stripping Unit
01. Upper waste transmission mechanism〇
02. Users can choose whether to use the stripping function by lifting upper stripping frame〇
03. Intermediate negative stripping transmission mechanism〇
04. Lower stripping transmission mechanism〇
05. The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency〇
Delivery Unit
01. High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine.(Special for high pile stacking delivery)〇
02. Paper delivery alignment device〇
03. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
04. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electrical unit
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1100BCMHC-1300BCMHC-1500BCMHC-1650BC
Max. Paper Size1100×790mm1290×940mm1500×1100mm1650×1200mm
Min. Paper Size400×350mm470×450mm470×450mm550×500mm
Max. Cutting Size1070×770mm1280×920mm1480×1080mm1620×1180mm
Min. Gripper Margin9-17mm9-17mm9-17mm9-17mm
Min. Width of Cuts10-18mm10-18mm10-18mm10-18mm
Cutting Rule Height23.8mm23.8mm23.8mm23.8mm
Inner Chase Size1100×790mm1310×950mm1510×1120mm1682×1220mm
Stock RangeCorrugated board: ≤7mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy≤±0.1mm≤±0.15mm≤±0.15mm≤±0.2mm
Max. Die Cutting Force300T400T400T400T
Max. Working Speed7500s/h5500s/h5500s/h4500s/h
Max. Feeder Pile Height1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)
Main Motor Power11KW11KW15KW18.5KW
Full Load Wattage15KW15KW20KW24KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min
Net Weight of Machine14T16T19T22T
Machine Dimensions7683×4256×2350mm
(L: paper prepared track included,
W: platform included)		7880×4506×2467mm
(L: paper prepared track included,
W: platform included)		8095×4706×2452mm
(L: paper prepared track included,
W: platform included)		8646×5117×2582mm
(L: paper prepared track included,
W: platform included)

Drawing

MHC-1100BC

]]> MHC 1100E/1300E/1350E/1500E/1650E http://www.wukongjiepai.com/en/?p=1168 Fri, 09 Oct 2020 12:35:18 +0000 http://www.wukongjiepai.com/?p=1168

Features Introduction

MHC Series Automatic Die Cutting Machine is equipped with servo motor control system, thus makes sure thick and thin paper feeding function effectively, paper feeding system can be divided into three types: 1. single piece of paper feeding function (for 4 – 8mm corrugated paper), 2. two pieces of overlapping paper feeding function (for 2 – 4mm corrugated paper), 3. multiple pieces of overlapping paper feeding function (for to 250g – 2mm paper). This machine including both manual paper feeding and automatic feeder paper feeding function. On condition of flat corrugated paper, automatic feeder paper feeding is accepted with raising efficiency and reducing workforce. Manual paper feeding comes in handy on condition of uneven corrugated paper. This machine maintains multi-operational function, and its development is combined with advantages of similar products in domestic and overseas, is special equipment for packing products such as cartons and paper boxes. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die cutting. Other parts are adopted such as intermittent mechanism with high precision, pneumatic clutch and pneumatic closed up mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step-less speed variation.
This machine is equipped with sensors and safety device to ensure normal operation of machine and safety of workers.

Partial Introduction

Feeder unit

Feeder lifting device(Tiptronic function)

Servo motor conveyor positioning device

Three paper feeding modes:
● Single-sheet paper feeding (suitable for 4-8.5MM corrugated cardboard)
● Double-sheet overlapping paper feeding (suitable for 2-4MM corrugated cardboard)
● Multiple-sheet overlapping paper feeding (suitable for paper with a thickness of ≤2MM)

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Non-stop roll-up curtain type paper delivery device

Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

Electric appliance unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1100E/1300E/1350E/1500E/1650E
01. Non-stop high-speed paper feeding section〇
02. Feeder lifting device(Tiptronic function)〇
03. Fish-scale powerful paper suction feeder head with 4 suction and 6 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper〇
04. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy〇
05. Triple feeder head anti-collision device〇
06. Horizontal paper separation blower〇
07. Electrical left/right fine-tuning device for the main feed pile〇
08. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder〇
09. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine〇
10. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements〇
11. Photoelectric detection of side gauge and front gauge〇
12. Servo motor conveying and positioning device〇
13. Three paper feeding modes:
1)Single-sheet paper feeding (suitable for 4-8.5MM corrugated cardboard)
2)Double-sheet overlapping paper feeding (suitable for 2-4MM corrugated cardboard)
3)Multiple-sheet overlapping paper feeding (suitable for paper with a thickness of ≤2MM)		〇
14. Electromechanical double sheet detector〇
15. Imported paper feeding belt and stainless steel transfer plate〇
16. Pneumatic lifting device for paper feeding frame〇
17. PLC and electronic cam control the timing of the whole machine〇
18. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient〇
06. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electrical Parts
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1100EMHC-1300EMHC-1350EMHC-1500EMHC-1650E
Max. Sheet Size1100×790mm1290×940mm1350×1100mm1500×1100mm1650×1200mm
Min. Sheet Size400×350mm470×450mm470×450mm470×450mm550×500mm
Max. Cutting Size1070×770mm1280×920mm1330×1080mm1480×1080mm1620×1180mm
Min. Gripper Margin9-17mm9-17mm9-17mm9-17mm9-17mm
Cutting Rule Height23.8mm23.8mm23.8mm23.8mm23.8mm
Inner Chase Size1100×790mm1310×950mm1390×1120mm1510×1120mm1682×1220mm
Stock RangeCardboard：≥200g/m2；Corrugated board: ≤7mm, E, B, C, A and AB corrugated papeCardboard：≥200g/m2；Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated papeCardboard：≥200g/m2；Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCardboard：≥250g/m2；Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCardboard：≥350g/m2；Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy≤±0.1mm≤±0.15mm≤±0.15mm≤±0.15mm≤±0.2mm
Max. Die Cutting Force300T400T400T400T400T
Max. Working Speed7500s/h5500s/h5500s/h5500s/h4500s/h
Max. Feeder Pile Height1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)
Main Motor Power11KW11KW15KW15KW18.5KW
Full Load Wattage18KW18KW22KW22KW26KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min
Net Weight of Machine16T18T20T21T23T
Machine Dimensions6440×4256×2350mm (L×W×H)  (L: paper prepared track included, W: platform included)8276×4506×2467mm (L×W×H)  (L: paper prepared track included, W: platform included)8033×4688×2435mm (L×W×H)  (L: paper prepared track included, W: platform included)8546×4706×2452mm (L×W×H)  (L: paper prepared track included, W: platform included)9144×5117×2582(L×W×H)  (L: paper prepared track included, W: platform included)

Drawing

MHC-1100E

MHC-1300E

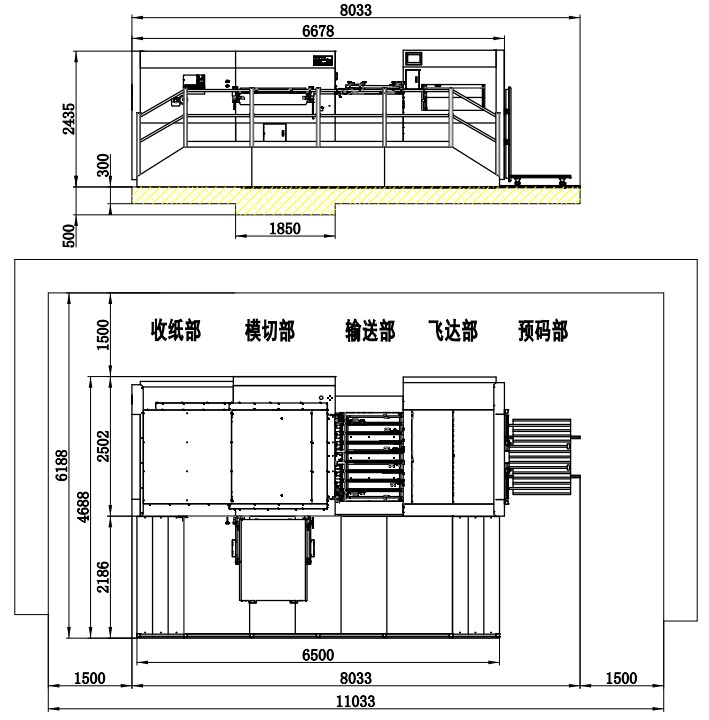

MHC-1350E

MHC-1500E

MHC-1650E

]]> MHC 1100EC/1300EC/1350EC/1500EC/1650EC http://www.wukongjiepai.com/en/?p=1162 Fri, 09 Oct 2020 12:33:02 +0000 http://www.wukongjiepai.com/?p=1162

Features Introduction

MHC Series Automatic Die Cutting Machine is equipped with servo motor control system, thus makes sure thick and thin paper feeding function effectively, paper feeding system can be divided into three types: 1. single piece of paper feeding function (for 4 – 8mm corrugated paper), 2. two pieces of overlapping paper feeding function (for 2 – 4mm corrugated paper), 3. multiple pieces of overlapping paper feeding function (for to 250g – 2mm paper). This machine including both manual paper feeding and automatic feeder paper feeding function. On condition of flat corrugated paper, automatic feeder paper feeding is accepted with raising efficiency and reducing workforce. Manual paper feeding comes in handy on condition of uneven corrugated paper. This machine maintains multi-operational function, and its development is combined with advantages of similar products in domestic and overseas, is special equipment for packing products such as cartons and paper boxes. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die cutting. Other parts are adopted such as intermittent mechanism with high precision, pneumatic clutch and pneumatic closed up mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step-less speed variation.
This machine is equipped with sensors and safety device to ensure normal operation of machine and safety of workers.

Partial Introduction

Feeder unit

Feeder lifting device(Tiptronic function)

Servo motor conveyor positioning device

Three paper feeding modes:
● Single-sheet paper feeding (suitable for 4-8.5MM corrugated cardboard)
● Double-sheet overlapping paper feeding (suitable for 2-4MM corrugated cardboard)
● Multiple-sheet overlapping paper feeding (suitable for paper with a thickness of ≤2MM)

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Stripping unit

Adopt center line system,Upper and lower stripping tool mounting frame can be pulled out for job set up and make ready.

Non-stop roll-up curtain type paper delivery device

Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

Electric appliance unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1100EC/1300EC/1350EC/1500EC/1650EC
01. Non-stop high-speed paper feeding section〇
02. Feeder lifting device(Tiptronic function)〇
03. Fish-scale powerful paper suction feeder head with 4 suction and 6 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper〇
04. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy〇
05. Triple feeder head anti-collision device〇
06. Horizontal paper separation blower〇
07. Electrical left/right fine-tuning device for the main feed pile〇
08. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder〇
09. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine〇
10. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements〇
11. Photoelectric detection of side gauge and front gauge〇
12. Servo motor conveying and positioning device〇
13. Three paper feeding modes:
1)Single-sheet paper feeding (suitable for 4-8.5MM corrugated cardboard)
2)Double-sheet overlapping paper feeding (suitable for 2-4MM corrugated cardboard)
3)Multiple-sheet overlapping paper feeding (suitable for paper with a thickness of ≤2MM)		〇
14. Electromechanical double sheet detector〇
15. Imported paper feeding belt and stainless steel transfer plate〇
16. Pneumatic lifting device for paper feeding frame〇
17. PLC and electronic cam control the timing of the whole machine〇
18. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Stripping Unit
01. Upper waste transmission mechanism〇
02. Users can choose whether to use the stripping function by lifting upper stripping frame〇
03. Intermediate negative stripping transmission mechanism〇
04. Lower stripping transmission mechanism〇
05. The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. The two-way auxiliary air blowing for paper delivery and the manual sampling mechanism make the operation convenient〇
06. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electrical Parts
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1100ECMHC-1300ECMHC-1350ECMHC-1500ECMHC-1650EC
Max. Sheet Size1100×790mm1290×940mm1350×1100mm1500×1100mm1650×1200mm
Min. Sheet Size400×350mm470×450mm470×450mm470×450mm550×500mm
Max. Cutting Size1070×770mm1280×920mm1330×1080mm1480×1080mm1620×1180mm
Min. Gripper Margin9-17mm9-17mm9-17mm9-17mm9-17mm
Min. Width of Cuts10-18mm10-18mm10-18mm10-18mm10-18mm
Cutting Rule Height23.8mm23.8mm23.8mm23.8mm23.8mm
Inner Chase Size1100×790mm1310×950mm1390×1120mm1510×1120mm1682×1220mm
Stock RangeCardboard：≥200g/m2；Corrugated board: ≤7mm, E, B, C, A and AB corrugated paperCardboard：≥200g/m2；Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCardboard：≥200g/m2；Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCardboard：≥250g/m2；Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCardboard：≥350g/m2；Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy≤±0.1mm≤±0.15mm≤±0.15mm≤±0.15mm≤±0.2mm
Max. Die Cutting Force300T400T400400T400T
Max. Working Speed7500s/h5500s/h5500s/h5500s/h4500s/h
Max. Feeder Pile Height1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)1600mm (With pallet)
Max. Delivery Pile Height1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)
Main Motor Power11KW11KW15KW15KW18.5KW
Full Load Wattage19KW19KW24KW24KW28KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min
Net Weight of Machine17T19T21T22T24T
Machine Dimensions7470×4256×2350mm
(L: paper prepared track included,
W: platform included)		9551×4506×2467mm
(L: paper prepared track included,
W: platform included)		9464×4688×2435mm
(L: paper prepared track included,
W: platform included)		9956×4706×2452mm
(L: paper prepared track included,
W: platform included)		10690×5117×2582mm
(L: paper prepared track included,
W: platform included)

Drawing

MHC-1100EC

MHC-1300EC

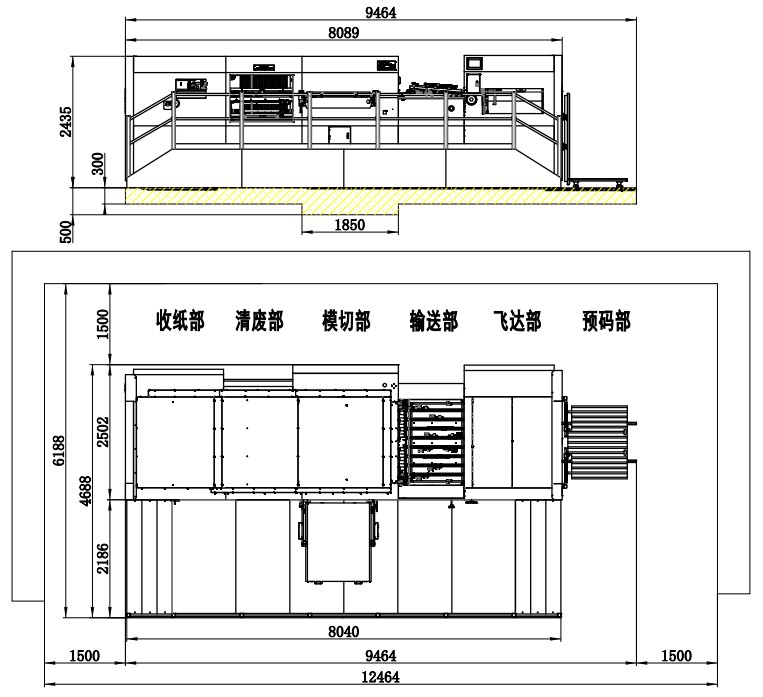

MHC-1350EC

MHC-1500EC

MHC-1650EC

]]> MHC 1100F/1300F/1350F/1500F/1650F/1900F http://www.wukongjiepai.com/en/?p=1302 Fri, 09 Oct 2020 15:59:09 +0000 http://www.wukongjiepai.com/?p=1302

Features Introduction

Lead edge feeder

● Top gear and precise Lead Edge Feeder design, allowed consistent feeding with various quality corrugated board.
● New technology polyurethane wheel surface with grid lifter and air cushion ensure smooth feeding and accurate alignment even warped board.

● Fine vacuum suction adjustment through inverter adapts to wide range stock from f flute to double wall corrugate.

Sheet transmission and alignment section

● Selectable left and right side push lays to ensure accurate alignment.
● Advanced non-stop adjustment of feeding timing, reduce down time.
● Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Non-stop roll-up curtain type paper delivery device

Roll-up type auxiliary paper collection rack, which can realize non-stop paper collection. Delivery unit is also equipped with two-way auxiliary blower for paper collecting, with manual sampling mechanism which is easy to operate.

Electrical unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1100F/1300F/1350F/1500F/1650F/1900F
01. High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board〇
02. New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board〇
03. Fine vacuum suction adjustment through inverter adapts to wide range stock from F flute to five-layer corrugate paper〇
04. Electric side pushing baffles (both the left and right sides)〇
05. The left and right baffle can be adjusted either independently or synchronously. The slanted front baffle can be fine-adjusted in both forward/backward and upward/downward directions, reducing pressure of the paper under the paper pile for smoother feeding〇
06. Right and left side positioning push gauge to ensure precise side positioning of the cardboard〇
07. The pallet height can be adjusted according to the paper quality and thickness, making the paper feeding smoother and more stable〇
08. The fine-tuning device for the front baffle’s front and rear positions can be finely adjusted according to the gripper margin size〇
09. Non-stop adjusting device for feeding step〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine.(Special for high pile stacking delivery)〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electrical Parts
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1100FMHC-1300FMHC-1350FMHC-1500FMHC-1650FMHC-1900F
Max. Sheet Size1100×790mm1290×940mm1350×1100mm1500×1100mm1650×1200mm1900×1400mm
Min. Sheet Size470×450mm470×450mm470×450mm470×450mm550×500mm650×550mm
Max. Cutting Size1070×770mm1280×920mm1330×1080mm1480×1080mm1620×1180mm1870×1380mm
Min. Gripper Waste9-17mm9-17mm9-17mm9-17mm9-17mm9-17mm
Cutting Rule Height23.8mm23.8mm23.8mm23.8mm23.8mm23.8mm
Inner Chase Size1100×790mm1310×950mm1390×1120mm1510×1120mm1682×1220mm1912×1420mm
Stock RangeCorrugated board: ≤7mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy≤±0.1mm≤±0.15mm≤±0.15mm≤±0.15mm≤±0.2mm≤±0.2mm
Max. Die Cutting Force300T400T400T400T400T450T
Max. Working Speed7500s/h5500s/h5500s/h5500s/h4500s/h4000s/h
Max. Delivery Pile Height1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1500mm (With pallet)
Main Motor Power11KW11KW15KW15KW18.5KW18.5KW
Full Load Wattage22KW22KW26KW26KW30KW30KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min
Machine Weight17T19T21T22T24T30T
Machine Dimension6780×4500×2350mm
(L: paper prepared track included,
W: platform included)		7740×5240×2467mm
(L: paper prepared track included,
W: platform included)		7969×5240×2435mm
(L: paper prepared track included,
W: platform included)		7969×5240×2452mm
(L: paper prepared track included,
W: platform included)		8417×5580×2582mm
(L: paper prepared track included,
W: platform included)		8900×6260×2525mm
(L: paper prepared track included,
W: platform included)

Drawing

MHC-1100F

MHC-1300F

MHC-1350FC

MHC-1500F

MHC-1650F

MHC-1900F

]]> MHC 1100FC/1300FC/1350FC/1500FC/1650FC http://www.wukongjiepai.com/en/?p=1295 Fri, 09 Oct 2020 15:53:20 +0000 http://www.wukongjiepai.com/?p=1295

Features Introduction

Lead edge feeder

● Top gear and precise Lead Edge Feeder design, allowed consistent feeding with various quality corrugated board.
● New technology polyurethane wheel surface with grid lifter and air cushion ensure smooth feeding and accurate alignment even warped board.

● Fine vacuum suction adjustment through inverter adapts to wide range stock from f flute to double wall corrugate.

Sheet transmission and alignment section

● Selectable left and right side push lays to ensure accurate alignment.
● Advanced non-stop adjustment of feeding timing, reduce down time.
● Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Stripping unit

Adopt center line system,Upper and lower stripping tool mounting frame can be pulled out for job set up and make ready.

Non-stop roll-up curtain type paper delivery device

Roll-up curtain type auxiliary paper collection rack, which can realize non-stop paper collection. Delivery unit is also equipped with two-way auxiliary blower for paper collecting, with manual sampling mechanism which is easy to operate.

Electrical unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1100FC/1300FC/1350FC/1500FC/1650FC
01. High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board〇
02. New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board〇
03. Fine vacuum suction adjustment through inverter adapts to wide range stock from F flute to five-layer corrugate paper〇
04. Electric side pushing baffles (both the left and right sides)〇
05. The left and right baffle can be adjusted either independently or synchronously. The slanted front baffle can be fine-adjusted in both forward/backward and upward/downward directions, reducing pressure of the paper under the paper pile for smoother feeding〇
06. Right and left side positioning push gauge to ensure precise side positioning of the cardboard〇
07. The pallet height can be adjusted according to the paper quality and thickness, making the paper feeding smoother and more stable〇
08. The fine-tuning device for the front baffle’s front and rear positions can be finely adjusted according to the gripper margin size〇
09. Non-stop adjusting device for feeding step〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Stripping Unit
01. Upper waste transmission mechanism〇
02. Users can choose whether to use the stripping function by lifting upper stripping frame〇
03. Intermediate negative stripping transmission mechanism〇
04. Lower stripping transmission mechanism〇
05. The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine.(Special for high pile stacking delivery)〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electrical Parts
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1100FCMHC-1300FCMHC-1350FCMHC-1500FCMHC-1650FC
Max. Sheet Size1100×790mm1290×940mm1350×1100mm1500×1100mm1650×1200mm
Min. Sheet Size470×450mm470×450mm470×450mm470×450mm650×500mm
Max. Cutting Size1070×770mm1280×920mm1330×1080mm1480×1080mm1620×1180mm
Min. Gripper Waste9-17mm9-17mm9-17mm9-17mm9-17mm
Min. Width of Cuts10-18mm10-18mm10-18mm10-18mm10-18mm
Cutting Rule Height23.8mm23.8mm23.8mm23.8mm23.8mm
Inner Chase Size1100×790mm1310×950mm1390×1120mm1510×1120mm1682×1220mm
Stock RangeCorrugated board: ≤7mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy≤±0.1mm≤±0.15mm≤±0.15mm≤±0.15mm≤±0.2mm
Max. Die Cutting Force300T400T400T400T400T
Max. Working Speed7500s/h5500s/h5500s/h5500s/h4500s/h
Max. Delivery Pile Height1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)
Min. Motor Power11KW11KW15KW15KW18.5KW
Full Load Wattage23KW23KW28KW28KW32KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min
Net Weight of Machine18T20T22T23T25T
Machine Dimension7810×4500×2350mm
(L: paper prepared track included,
W: platform included)		8974×5240×2467mm(L: paper prepared track included,
W: platform included)		9380×5240×2435mm(L: paper prepared track included,
W: platform included)		9380×5240×2452mm(L: paper prepared track included,
W: platform included)		9964×5580×2582mm(L: paper prepared track included,
W: platform included)

Drawing

MHC-1100FC

MHC-1300FC

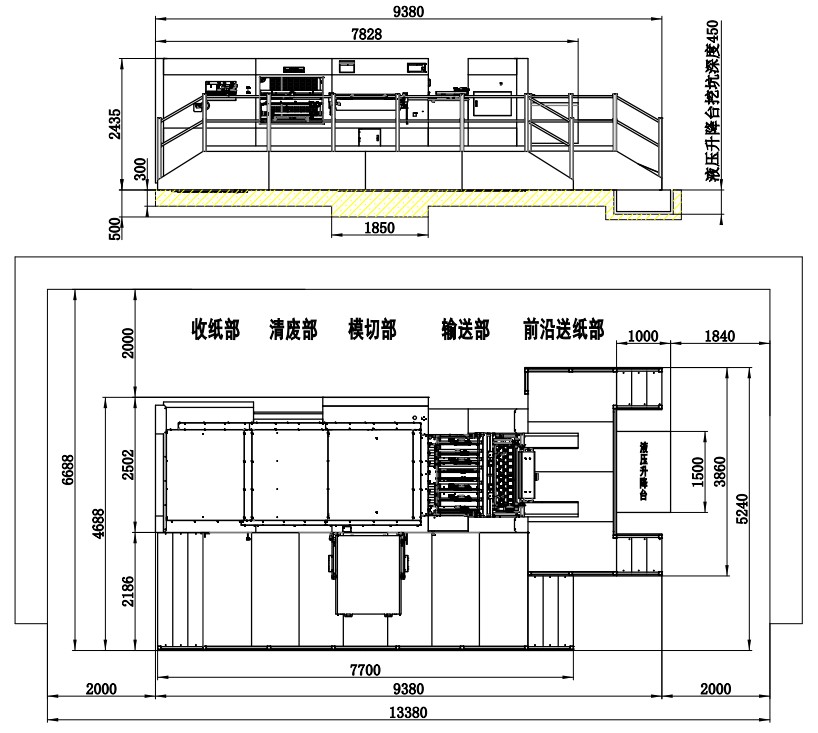

MHC-1350FC

MHC-1500FC

MHC-1650FC

]]> MHC 1300EF/1350EF/1500EF/1650EF/1900EF http://www.wukongjiepai.com/en/?p=1305 Fri, 09 Oct 2020 16:00:18 +0000 http://www.wukongjiepai.com/?p=1305

Features Introduction

Down Feeder

● Non – stop down suck feeder.
● Pneumatic board for sheet trimming.
● Down suck feeding to protect the printing.

Sheet transmission and alignment section

● Selectable left and right side push lays to ensure accurate alignment.
● Advanced non-stop adjustment of feeding timing, reduce down time.
● Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Non-stop roll-up curtain type paper delivery device

Roll-up curtain type auxiliary paper collection rack, which can realize non-stop paper collection. Delivery unit is also equipped with two-way auxiliary blower for paper collecting, with manual sampling mechanism which is easy to operate.

Electrical unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

Germany vaccum pump

Blow-suction dual-purpose vacuum pump of German Becker brand.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1300EF/1350EF/1500EF/1650EF/1900EF
01. High precision bottom suction paper feeder with non-stop suction nozzle at the bottom, uses vacuum adsorption mechanism to send corrugated board into the paper pressing roller, effectively avoiding sheet scratches during feeding〇
02. Electric side pushing baffles and pneumatic side pushing baffle (right sides)〇
03. Electrically controlled paper feed roller〇
04. Paper Presser and front gauge, double sheet detecter respond accurately〇
05. Front hook adjustment device, paper bending up and down can be adjusted〇
06. Non-stop adjusting device for feeding step〇
07. The fine-tuning device for the front baffle’s front and rear positions can be finely adjusted according to the gripper margin size〇
08. Right and left side positioning push gauge to ensure precise side positioning of the board〇
09. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine.(Special for high pile stacking delivery)〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electrical Parts
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1300EFMHC-1350EFMHC-1500EFMHC-1650EFMHC-1900EF
Max. Sheet Size1290×940mm1350×1100mm1500×1100mm1650×1200mm1900×1400mm
Min. Sheet Size470×450mm470×450mm470×450mm550×500mm650×550mm
Max. Cutting Size1280×920mm1330×1080mm1480×1080mm1620×1180mm1870×1380mm
Minimum Gripper Margin9-17mm9-17mm9-17mm9-17mm9-17mm
Cutting Rule Height23.8mm23.8mm23.8mm23.8mm23.8mm
Inner Chase Size1310×950mm1390×1120mm1510×1120mm1682×1220mm1912×1420mm
Stock RangeCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy≤±0.15mm≤±0.15mm≤±0.15mm≤±0.2mm≤±0.2mm
Max. Die Cutting Force400T400T400T400T450T
Max. Working Speed5500s/h5500s/h5500s/h4500s/h4000s/h
Max. Delivery Pile Height1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1500mm (With pallet)
Min. Motor Power11KW15KW15KW18.5KW18.5KW
Full Load Wattage20KW24KW24KW28KW28KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min
Net Weight of Machine20T22T23T25T31T
Machine Dimension7740×5240×2467mm
(L: paper prepared track included,
W: platform included)		7969×5240×2434mm
(L: paper prepared track included,
W: platform included)		8105×5240×2452mm
(L: paper prepared track included,
W: platform included)		8322×5580×2582mm
(L: paper prepared track included,
W: platform included)		8900×6260×2525mm(L: paper prepared track included,
W: platform included)

Drawing

MHC-1300EF

MHC-1350EF

MHC-1500EF

MHC-1650EF

MHC-1900EF

]]> MHC 1300EFC/1350EFC/1500EFC /1650EFC http://www.wukongjiepai.com/en/?p=1301 Fri, 09 Oct 2020 15:55:28 +0000 http://www.wukongjiepai.com/?p=1301

Features Introduction

Down Feeder

● Non – stop down suck feeder.
● Pneumatic board for sheet trimming.
● Down suck feeding to protect the printing

Sheet transmission and alignment section

● Selectable left and right side push lays to ensure accurate alignment.
● Advanced non-stop adjustment of feeding timing, reduce down time.
● Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.

Timing belt drive, Intermittent mechanism

High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.

Stripping unit

Adopt center line system,Upper and lower stripping tool mounting frame can be pulled out for job set up and make ready.

Non-stop roll-up curtain type paper delivery device

Roll-up type auxiliary paper collection rack, which can realize non-stop paper collection. Delivery unit is also equipped with two-way auxiliary blower for paper collecting, with manual sampling mechanism which is easy to operate.

Electrical unit

Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

Germany vaccum pump

Blow-suction dual-purpose vacuum pump of German Becker brand.

Auto lubrication system

The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.

Configurations

Conveying UnitMHC-1300EFC/1350EFC/1500EFC/1650EFC
01. High precision bottom suction paper feeder with non-stop suction nozzle at the bottom, uses vacuum adsorption mechanism to send corrugated board into the paper pressing roller, effectively avoiding sheet scratches during feeding〇
02. Electric side pushing baffles and pneumatic side pushing baffle (right sides)〇
03. Electrically controlled paper feed roller〇
04. Paper Presser and front gauge, double sheet detecter respond accurately〇
05. Front hook adjustment device, paper bending up and down can be adjusted〇
06. Non-stop adjusting device for feeding step〇
07. The fine-tuning device for the front baffle’s front and rear positions can be finely adjusted according to the gripper margin size〇
08. Right and left side positioning push gauge to ensure precise side positioning of the board〇
09. Blow-suction dual-purpose vacuum pump of German Becker brand〇
Die-cutting Unit
01. The entire machine casting is made of QT-700-2 nodular cast iron〇
02. Imported worm gear, worm gear and 40cr crankshaft〇
03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure〇
04. Imported main drive chain〇
05. Imported intermittent splitter〇
06. Imported synchronous belt and pulley drive〇
07. Imported pneumatic clutch brake device〇
08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons〇
09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface〇
10. Die-cutting base plate and die mould rotary device〇
11. The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate〇
12. The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation〇
13. Japan SMC air pressure detection device, low air pressure alarm〇
14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine〇
15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil〇
Stripping Unit
01. Upper waste transmission mechanism〇
02. Users can choose whether to use the stripping function by lifting upper stripping frame〇
03. Intermediate negative stripping transmission mechanism〇
04. Lower stripping transmission mechanism〇
05. The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency〇
Delivery Unit
01. Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery〇
02. High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine.(Special for high pile stacking delivery)〇
03. Paper delivery alignment device〇
04. Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up〇
05. Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain〇
Electrical Parts
01. Self-developed PLC control system(Invention Patent)〇
02. The die-cutting unit adopts 10.4-inch touch display screens〇
03. The machine adopts Germany Moeller brand relays, AC contactors, air switches and buttons, to ensure the stability and reliability of electrical parts〇
04. The machine adopts Japanese Omron brand photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action〇

Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △

Main Technical Parameter

ModelMHC-1300EFCMHC-1350EFCMHC-1500EFCMHC-1650EFC
Max. Sheet Size1290×940mm1350×1100mm1500×1100mm1650×1200mm
Min. Sheet Size470×450mm470×450mm470×450mm550×500mm
Max. Cutting Size1280×920mm1330×1080mm1480×1080mm1620×1180mm
Min. Gripper Margin9-17mm9-17mm9-17mm9-17mm
Min. Width of Cuts10-18mm10-18mm10-18mm10-18mm
Cutting Rule Height23.8mm23.8mm23.8mm23.8mm
Inner Chase Size1310×950mm1390×1120mm1510×1120mm1682×1220mm
Stock RangeCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paperCorrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper
Die Cutting Accuracy≤±0.15mm≤±0.15mm≤±0.15mm≤±0.2mm
Max. Die Cutting Force400T400T400T400T
Max. Working Speed5500s/h5500s/h5500s/h4500s/h
Max. Delivery Pile Height1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)1400mm (With pallet)
Min. Motor Power11KW15KW15KW18.5KW
Full Load Wattage21KW26KW26KW30KW
Air RequirementPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.37m3/minPressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min
Machine Weight21T23T24T26T
Machine Dimension8916×5240×2467mm
(L: paper prepared track included,
W: platform included)		9380×5240×2435mm
(L: paper prepared track included,
W: platform included)		9516×5240×2452mm
(L: paper prepared track included,
W: platform included)		9869×5580×2582mm
(L: paper prepared track included,
W: platform included)

Drawing

MHC-1300EFC

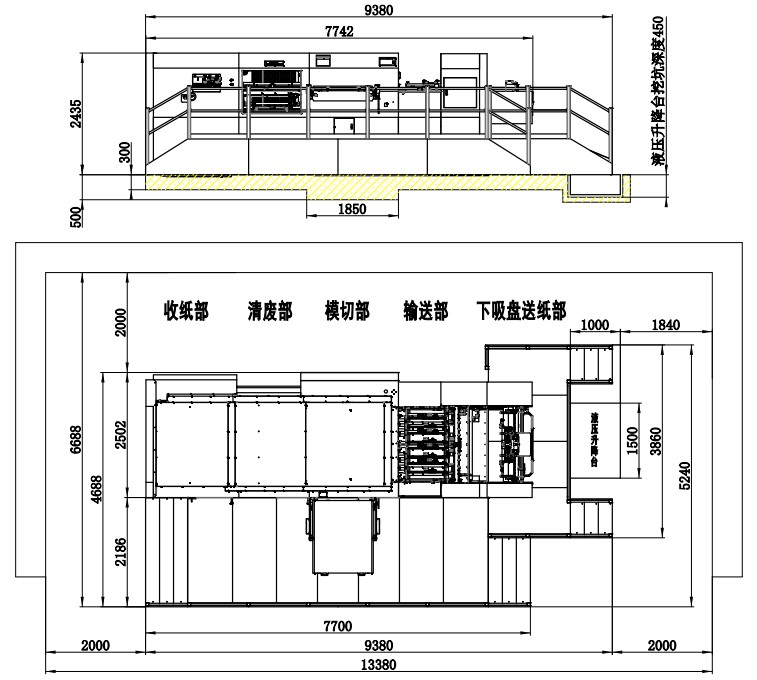

MHC-1350EFC

MHC-1500EFC

MHC-1650EFC

]]> 主站蜘蛛池模板： 巴彦县| 平江县| 光山县| 惠安县| 金山区| 吉隆县| 英德市| 任丘市| 红原县| 睢宁县| 思茅市| 沭阳县| 梓潼县| 阿拉善左旗| 桦甸市| 长宁县| 阿荣旗| 衡阳县| 广元市| 华池县| 昌江| 永清县| 哈尔滨市| 田林县| 柞水县| 阿克| 公主岭市| 东至县| 嵊泗县| 肥西县| 盱眙县| 庆元县| 闸北区| 长丰县| 阳城县| 甘孜| 商洛市| 温宿县| 临泽县| 大方县| 红原县|
