Features Introduced

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

  1. Auto positioning slitting system.
  2. Paper pre-press device.
  3. 3 times delivery device(no impression line).
  4. Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

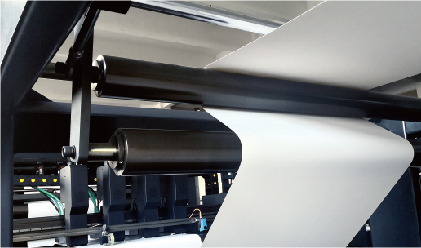

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

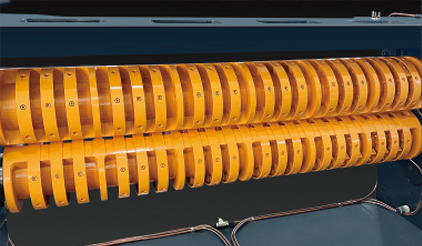

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

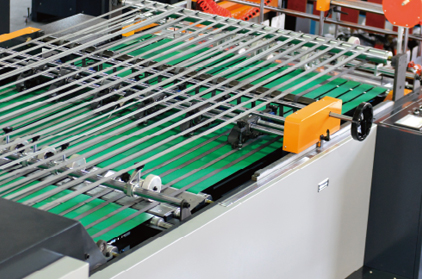

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight21000/23000/26000kgs
Full-load power75/88/88kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

Drawing

]]> SMC 1900 http://www.wukongjiepai.com/en/?p=983 Wed, 07 Oct 2020 20:00:56 +0000 http://www.wukongjiepai.com/?p=983

Features Introduced

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

  1. Auto positioning slitting system.
  2. Paper pre-press device.
  3. 3 times delivery device(no impression line).
  4. Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight28000kgs
Full-load power106kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

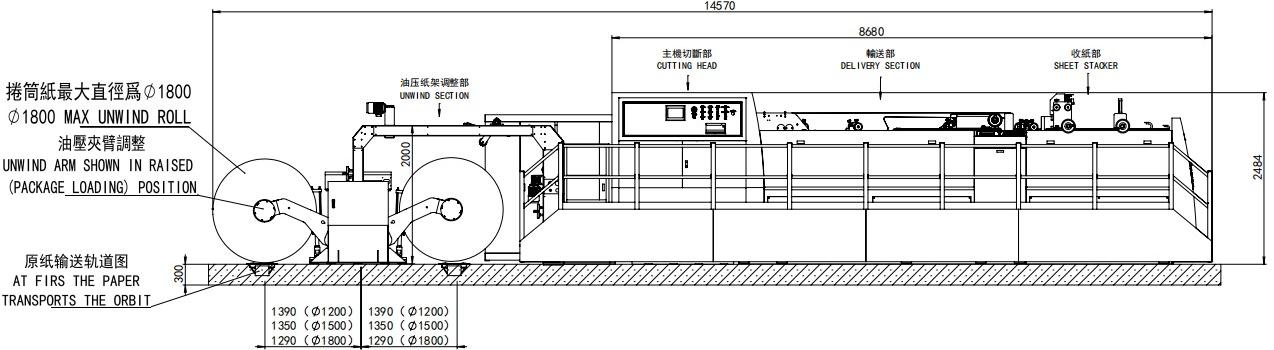

Drawing

]]> SMC-1100H/1500H/1700H http://www.wukongjiepai.com/en/?p=12362 Thu, 10 Jul 2025 01:23:11 +0000 http://www.wukongjiepai.com/en/?p=12362

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100H/1500H/1700H
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight23000/25000/28000kgs
Full-load power78/91/91kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

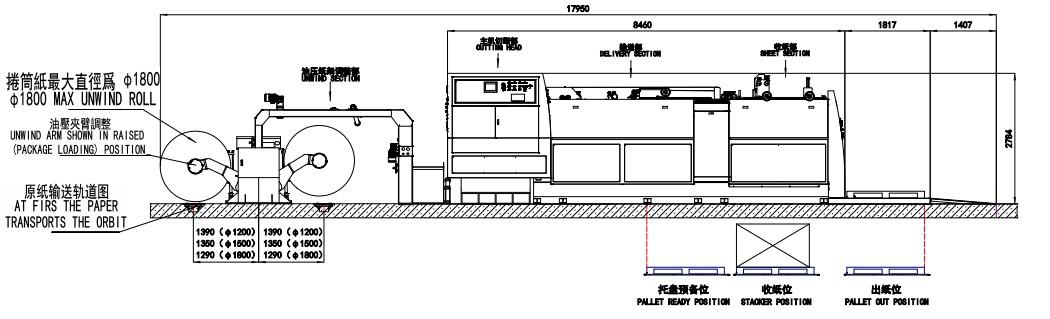

Drawing

]]> SMC-1900H http://www.wukongjiepai.com/en/?p=12371 Thu, 10 Jul 2025 01:27:35 +0000 http://www.wukongjiepai.com/en/?p=12371

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900H
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight30000kgs
Full-load power109kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

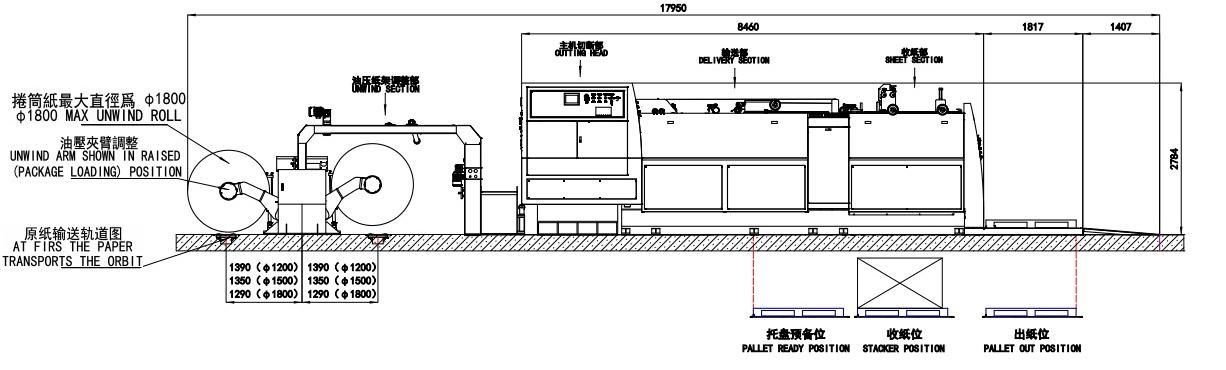

Drawing

]]> SMC 1100ZH/1500ZH/1700ZH http://www.wukongjiepai.com/en/?p=5651 Sat, 11 Sep 2021 01:54:15 +0000 http://www.wukongjiepai.com/en/?p=5651

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100ZH/1500ZH/1700ZH
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight25000/27000/30000kgs
Full-load power81/94/94kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

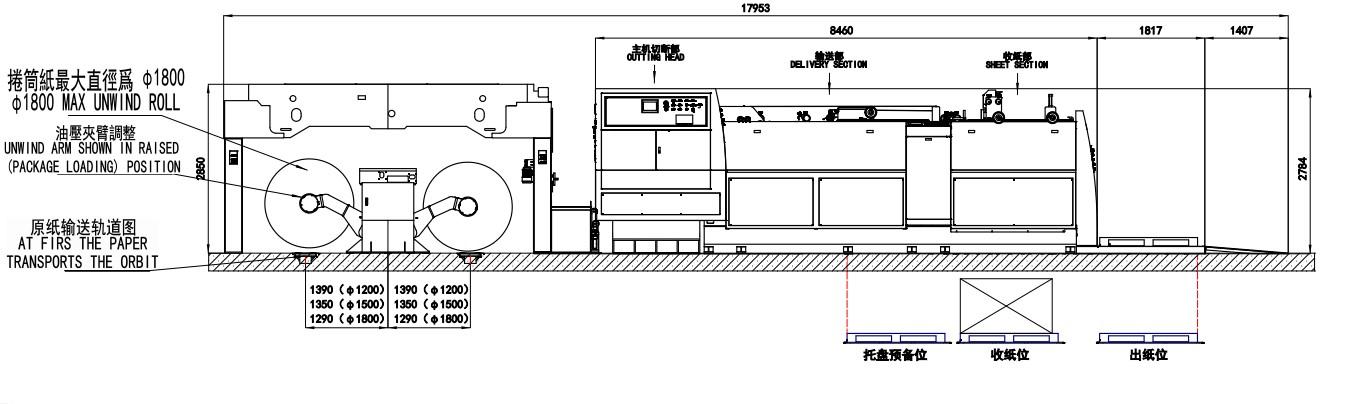

Drawing

]]> SMC 1900ZH http://www.wukongjiepai.com/en/?p=967 Wed, 07 Oct 2020 19:48:08 +0000 http://www.wukongjiepai.com/?p=967

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900ZH
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight32000kgs
Full-load power112kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

Drawing

]]> SMC-1100 http://www.wukongjiepai.com/en/?p=7507 Mon, 28 Aug 2023 10:44:29 +0000 http://www.wukongjiepai.com/en/?p=7507

Features Introduced

SMC-1100 Cigarette Packing Servo Precision Double-Helix High Speed Sheet Cutter Machine With Photoelectric Tracking is a high-precision and efficient sheet cutter equipment developed by our company.This machine adopts several edge position correction function,embedded double-helix design, non-stop rolling curtain paper delivery device, is easy to operate.The photoelectric tracking cutting accuracy is within ≤± 0.1mm,the edge of cutting paper is smooth without crude or powder.It is the most ideal photoelectric tracking sheet cutting machine in cigarette packing printing industry at present.

Partial Introduction

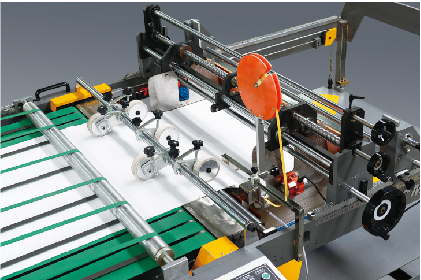

Slitting system

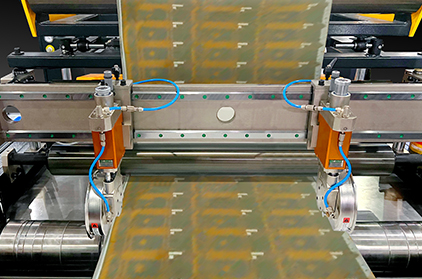

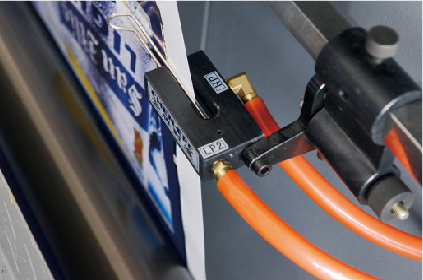

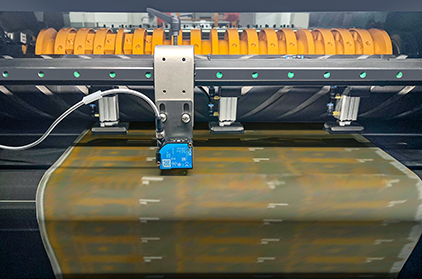

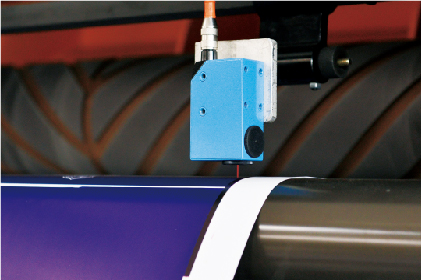

Photoelectric tracking system

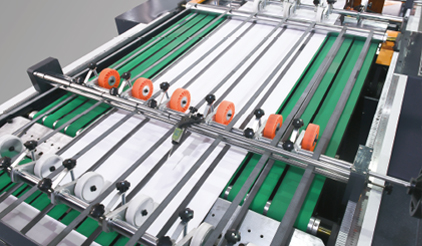

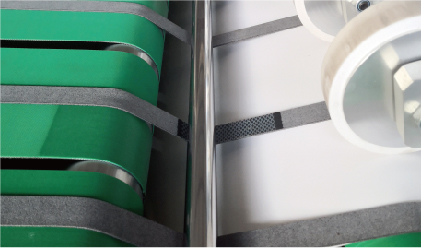

3 times delivery (No impression line)

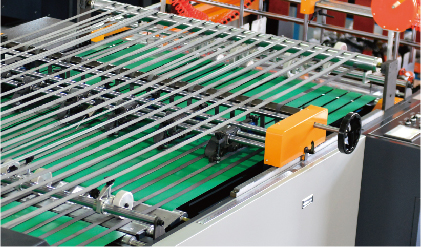

Non-stop rolling curtain paper delivery device

Main Technical Parameter

ModelSMC-1100
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1450mm
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. photoelectric tracking cutting meter speed150m/min
Max. photoelectric tracking cutting speed220cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
Max. paper piling height1400mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W.18000kgs
Full-load Power75kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210

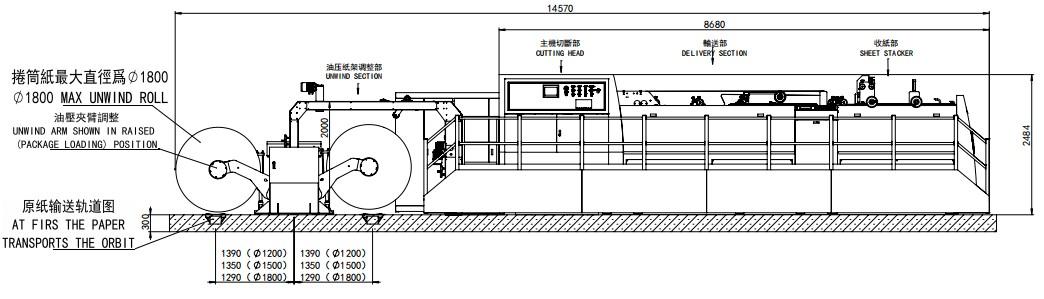

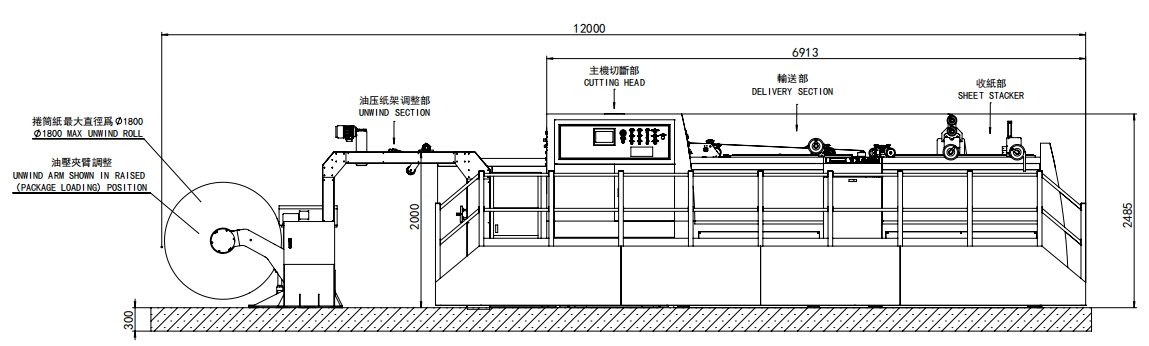

Drawing

]]> SM 1100/1500/1700 http://www.wukongjiepai.com/en/?p=5679 Sat, 11 Sep 2021 02:17:35 +0000 http://www.wukongjiepai.com/en/?p=5679

Features Introduced

SM-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Auto anti curve

Auto edge position correction

Three sets of slitting knife are used for trimming and middle slitting

Embedded double helix knife(invention patent)

Anti-static device

Conveying unit

Main Technical Parameter

ModelSM-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight18000/20000/23000kgs
Full-load power69/82/82kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
550190350
600210350
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

Drawing

Double Roll

Four Rolls

]]> SM 1900 http://www.wukongjiepai.com/en/?p=1038 Thu, 08 Oct 2020 09:40:01 +0000 http://www.wukongjiepai.com/?p=1038

Features Introduced

SM-1900 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Auto anti curve

Auto edge position correction

Three sets of slitting knife are used for trimming and middle slitting

Embedded double helix knife(invention patent)

Anti-static device

Conveying unit

Main Technical Parameter

ModelSM-1900
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight25000kgs
Full-load power100kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

Drawing

Double Roll

Four Rolls

]]> KMC-1100/1500/1700 http://www.wukongjiepai.com/en/?p=9474 Tue, 13 May 2025 05:37:31 +0000 http://www.wukongjiepai.com/en/?p=9474

Features Introduced

KMC-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. lt is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Embedded double helix knife(invention patent)

Auto positioning slitting system

3 times delivery (No impression line)

Non-stop rolling curtain paper delivery device

Main Technical Parameter

ModelKMC-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precision (1 roll)Cutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. scroll diameter1500mm(KMC-1100)
1800mm(KMC-1500/1700)
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W. (1 roll)18000/20000/23000kgs
Full-load Power75/88/88kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210
1650335210

Drawing

KMC-1500

KMC-1700

]]> KM-1100/1500/1700 http://www.wukongjiepai.com/en/?p=7520 Mon, 28 Aug 2023 10:56:35 +0000 http://www.wukongjiepai.com/en/?p=7520

Features Introduced

KM-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. lt is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Embedded double helix knife (Invention patent)

Slitting knifes (Optional)

Conveying unit

Main Technical Parameter

ModelKM-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting1 sheet(Optional)
Cutting precision (1 roll)Cutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. scroll diameter1500mm(KM-1100)
1800mm(KM-1500/1700)
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W. (1 roll)16000/18000/21000kgs
Full-load Power69/82/82kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210
1650335210

Drawing

KM-1100

]]> GM 1100/1500/1700/1900 http://www.wukongjiepai.com/en/?p=1043 Thu, 08 Oct 2020 10:19:40 +0000 http://www.wukongjiepai.com/?p=1043

Features Introduced

GM-1100/1500/1700/1900 Servo Precision High Speed Sheet Cutter apply the advanced techinque of Germany and England. The machine computer control system apply servo motor and AC transducer which are both international of top brand. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland. The electrical system adopts MOELLER&OMRON. The speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touchscreen makes the operation easy. The anti-curve rack assurethe paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benifit of your work.

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Main Technical Parameter

ModelGM-1100/1500/1700/1900
Model of cutting paperThe up knife cut reciprocally and the down knife is fixed
Thickness of cutting paper60-550GSM
Cutting length range450-1600mm
The format of slitting2 sheet
Cutting precisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. cutting meter speed350m/min
Max. cutting speed400cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100mm/1500mm/1700mm/1900mm
Max. paper piling height1500mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
Gross weight11000kgs/13000kgs/15000kgs/17000kgs
Full-load Power22/26/30/35kw
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Equipment of electrostatic elimination1SET
Middle slitting and waste collection system1SET
Automatic counting and label inserting equipment1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Double arm oil pressure shaftless mill roll stand1SET
Automatic directing and paper tension controller1SET
Equipment of automatic vacuum1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

Double Roll

Four Rolls

]]> CM 1100A/1500A/1700A/1900A http://www.wukongjiepai.com/en/?p=1051 Thu, 08 Oct 2020 13:35:02 +0000 http://www.wukongjiepai.com/?p=1051

Features Introduced

CM-1100/1500/1700/1900A Servo Precision Sheet Cutter apply the advanced technique of Germany and England. The computer control system apply AC servo motor and AC transducer. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINOLEVA from Switzerland. The electrical system adopts MOELLER&OMRON, the speed of cutting paper is fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touch screen makes the operation easy. The anticurve rack assures the paper flat. The machine is very popular in the paper making and printing industry.

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting1 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight9000kgs/11000kgs/13000kgs/15000kgs
Full-load Power22/26/30/35KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> CM 1100A/1500A/1700A/1900A http://www.wukongjiepai.com/en/?p=2125 Sat, 14 Nov 2020 10:49:02 +0000 http://www.wukongjiepai.com/?p=2125

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

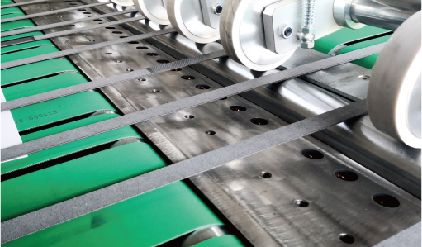

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting2 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight11000kgs/13000kgs/15000kgs/17000kgs
Full-load Power26/30/34/39KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> CM 1100A/1500A/1700A/1900A http://www.wukongjiepai.com/en/?p=1063 Thu, 08 Oct 2020 13:46:17 +0000 http://www.wukongjiepai.com/?p=1063

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting4 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight13000kgs/15000kgs/17000kgs/19000kgs
Full-load Power31/35/39/44KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

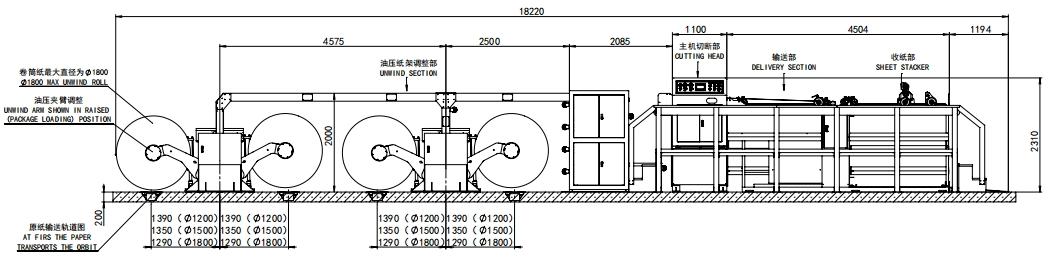

Drawing

]]> CM 1100A/1500A/1700A/1900A http://www.wukongjiepai.com/en/?p=1065 Thu, 08 Oct 2020 13:55:22 +0000 http://www.wukongjiepai.com/?p=1065

Partial Introduction

Photoelectric tracking system

Edge posltion controller system

Fast sheet cutter

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550g
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Cutting Length Range450-1650mm
The format of slitting1 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1%
Max. Cutting Speed300cuts/min
Max. Cutting Meter Speed300m/min
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight9000kgs/11000kgs/13000kgs/15000kgs
Full-load Power22/26/30/35KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET

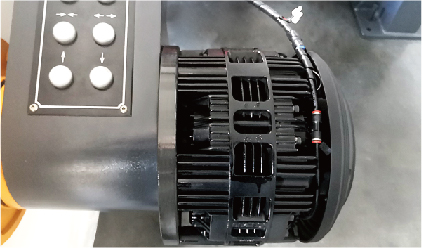

Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> 主站蜘蛛池模板： 吴旗县| 綦江县| 屏南县| 凉城县| 娄底市| 和静县| 海伦市| 武冈市| 加查县| 顺义区| 友谊县| 龙口市| 翁源县| 攀枝花市| 教育| 盖州市| 松溪县| 会同县| 合江县| 得荣县| 水富县| 米泉市| 五峰| 罗城| 呼图壁县| 双城市| 克什克腾旗| 新野县| 荥阳市| 衢州市| 临安市| 扎赉特旗| 长子县| 富川| 扎囊县| 社旗县| 明水县| 疏附县| 三台县| 溧水县| 凤山市|
